• Tandem rotary railcar dumper supplied by TAKRAF for Canada

Wagon Unloading

Wagon unloading systems often form part of complex bulk material handling systems.

Alongside individual machines, we also supply complete installations for the handling and storage of raw materials and other bulk goods. Our installations take care of unloading, storage, blending, sampling and reloading. Our unloading, storage and loading systems are always designed as custom solutions.

Our range of different wagon unloading systems

We design, fabricate and supply a wide-range of wagon unloading systems and equipment and our systems are all specifically designed to our client's requirements and incorporate various solutions according to their specific application, including actual site conditions and the minimizing of environmental impact.

System solutions for handling and transporting bulk materials

The employment of the latest techniques in planning, design and production ensures fast delivery. Alongside individual machines, we also supply complete installations for the handling and storage of raw materials and other bulk goods. We will advise you on-site to be able to take into account territorial specifics and regulations right from the start.

Flexible wagon unloading system solutions

Depending on requirements, various wagon unloading solutions can be employed including rotary tipplers, crescent-type tipplers and side-unloading tipplers and our systems are able to unload a train even when there are wagons of differing sizes. We also design and supply additional equipment such as train positioners, rail clamps and shifting platforms.

Multi-wagon rotary wagon tippler

  • Single, tandem, triple or quadruple (2x tandem) wagon unloading
  • C- type and O-type tippler design for fast duty cycles
  • Nominal system capacity - 40 cycles per hour
  • Tippler rotation operating time - approximately 35 seconds
  • Wagons are rotated either about their own center of gravity (no lifting required) or about the coupler center (unit train) in order to unload
  • Drive units are VFD-type and hence suitable for time cycle requirements

Side unloading wagon tippler

  • Wagon rotated and lifted about central pivot to unload
  • Nominal system capacity - 25 cycles per hour
  • Minimum tippler rotation operating time - approximately 70 seconds
  • Shallow civil works required as compared to rotary tipplers
  • Drive units are VFD-type and hence suitable for time cycle requirements

Positioner / Indexer

  • Employed for the handling of trains or uncoupled wagons to push and/or extract from the tippler
  • Drive units are VFD-type and hence suitable for time cycle requirements and the handling of loads
  • Rack and pinion type
  • Design capable of pushing/pulling on center strikers or wagon corners

Wheel grippers or wheel stops

  • Used to hold the train in position following completion of positioner forward motion cycles and after the positioner has disengaged itself from the train
  • Used to isolate the tippler from any residual train forces during train operation
  • Use to prevent separated unloading wagons from entering the tippler operating zone during wagon movement operations

Wagon unloading at ports

TAKRAF’s unloading, storage and loading systems for sea and river ports are always designed as custom solutions. TAKRAF’s port facilities are used throughout the world. With their high technical standards and state-of-the-art design, our systems satisfy the tough demands  faced by modern ports.

TAKRAF’s product range includes:

  • Ship to shore handling facilities using ship unloaders featuring grab operation and continuous handling
  • Equipment for the continuous mechanical transport of bulk goods on land, including loading facilities
  • Shore to ship handling facilities with mechanical slewing ship loaders featuring shuttle conveyors for sensitive bulk materials

References

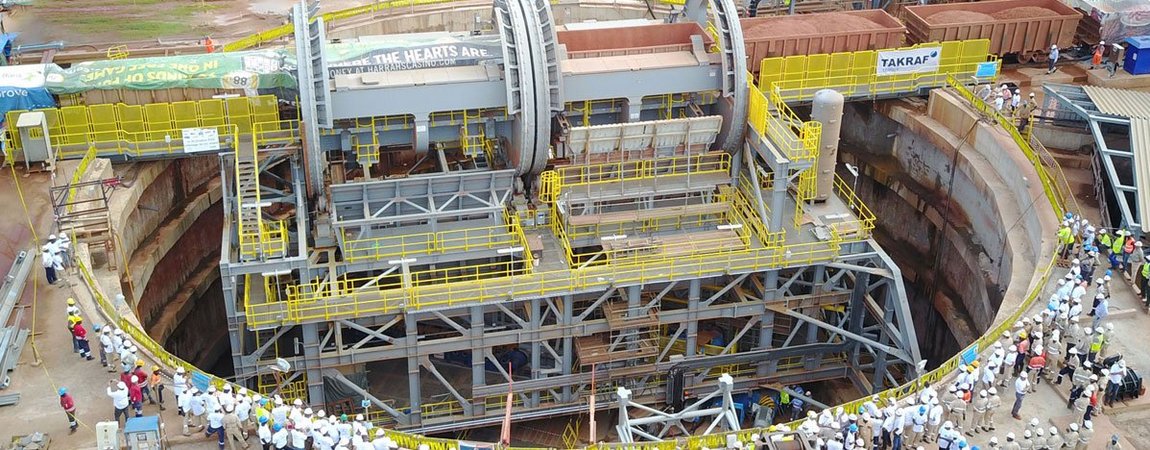

  • wagon tippler for bulk handling
    Customer
    Project Name
    Bulk export terminal
    Bulk material exporter
    Far East Russia
    2019

    Two-tandem rotary wagon (railcar) tipplers for Russian export terminal

    The project scope for the two-tandem rotary wagon tipplers covered design and supply, together with installation and commissioning of:

    • 2 x tandem wagon (railcar) tipplers
    • 2 x indexer and 2 x positioner
    • 8 x wheel grippers

    Note that this equipment forms part of a greater 6,000 t/h handling complex that comprises various TAKRAF equipment, including approximately 8 km of conveyors, two warming halls, two tandem tipplers, two stacker reclaimers, two sizers and one ship loader; as well as associated equipment, including magnets, metal detectors, belt scale, sample station and de-dusting system.

    Project figures

    3,500 t/h (each line)
    Mainly metallurgical coal
  • Wagon Unloading Station in Canada
    Customer
    Project Name
    Bulk terminal expansion
    Global diversified mining company
    Canada
    2021

    Tandem rotary railcar dumper (wagon tippler) for Canadian export terminal

    The project scope for the rotary railcar dumper covered design and supply, together with installation and commissioning supervision of:

    • 2 x single railcar dumpers - operating in tandem mode
    • 1 x indexer
    • 5 x wheel grippers

    The railcar indexer is capable of handling up to 152 railcars with a maximum pulling force of 150 tons at the sidearm. The machine can move trains in both directions with a superb positioning accuracy into the tandem dumper. The railcar dumper features hydraulic clamping mechanisms for railcars with various heights and widths, automatic mid-loco handling through the dumper system.


    Project figures

    7,200 t/h (maximum)
    Mainly metallurgical coal
    96 (normal) / 152 (max)
  • Efficiency

    • We design, fabricate and supply a wide-range of wagon unloading systems including rotary tipplers, crescent-type tipplers and side-unloading tipplers
    • We also design and supply additional equipment such as train positioners, rail clamps and shifting platforms
  • Reference

    • We boast a comprehensive reference list across a variety of different applications and ore type
  • Environment

    • Our machines incorporate various solutions with the aim of minimising environmental impact
  • Digitalization

    • Our machines can be specified as fully automated and thus work in the absence of an operator through a variety of sensors and are controlled from a central control point
  • Technical Excellence

    Our systems are able to unload a complete train even when there are different size wagons
